Replacing the mesh on your window screens or sliding screen doors is a straightforward task when you have the right materials and tools. One of the key components to get right is the spline—the flexible, rubber or foam cord that secures the screen mesh into the frame. If the spline isn’t the correct size or type, the mesh may not hold properly or could even tear during installation. In this guide, we’ll help you understand how to select the right spline for your project, ensuring a smooth and successful replacement.

What is Spline, and Why is It Important?

The spline holds the screen mesh in place, creating a tight, secure fit within the frame. It runs along the edge of the screen, fitting into the spline groove of the screen frame. A snug fit ensures that the screen stays taut and secure, while the wrong size or material can result in a loose or misaligned screen that can easily pop out or tear.

Key Factors in Choosing the Right Spline

  1. Spline Size

    • The most important factor is the diameter of the spline. Screen frames come with a channel or groove where the spline is pressed, and the spline needs to match that groove size perfectly.
    • Common spline sizes range from 0.125 inches (⅛ inch) to 0.250 inches (¼ inch) in diameter, but the size you need depends on the thickness of the screen frame's groove.
    • How to measure the groove: If you're replacing an old screen, measure the existing spline with a caliper. If you don’t have the old spline, measure the width of the groove using a ruler or tape measure. Selecting a spline slightly smaller than the groove will ensure it fits snugly.
  2. Spline Material

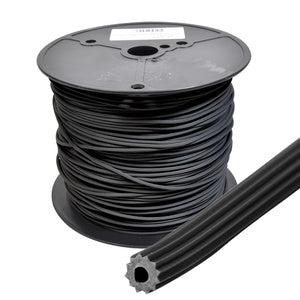

    • Vinyl Spline: The most common type of spline, vinyl is durable, flexible, and resistant to weather. It’s used with most standard screen meshes like fiberglass and aluminum. It’s the go-to option for many window screens and sliding screen doors.
    • Foam Spline: Foam spline is softer and more pliable, making it easier to install in narrow or shallow grooves. It’s often used with solar screens or thicker specialty meshes, which require a more flexible spline for a tight fit.
    • Metal Spline: Less common but still available, metal spline was traditionally used with aluminum or steel screen frames. However, most modern screens use vinyl or foam spline due to their easier installation and flexibility.
  3. Match the Spline with the Screen Mesh

    • Standard Fiberglass Mesh: This common mesh type works best with vinyl spline, as the material offers flexibility and durability that complements fiberglass mesh.
    • Solar Screen Mesh: Thicker and heavier than standard screen mesh, solar screens need a more pliable spline like foam. Using a regular vinyl spline could make installation difficult, and the mesh may not stay as taut.
    • Pet-Resistant or Super Screen: These heavy-duty mesh types also require a flexible spline, like foam or a thicker vinyl spline, to ensure they stay firmly in place without stretching or slipping.
    • Aluminum Screen Mesh: Metal spline was once used with aluminum mesh, but vinyl or foam spline is now more common. If you’re using aluminum mesh, just make sure the spline size matches the groove depth to hold the metal mesh securely.

Tips for Selecting and Installing the Correct Spline

  1. Test Fit Before Installation: Once you've selected your spline, always do a test fit by inserting a short section into the frame groove with the mesh. This ensures that the spline fits snugly but doesn’t cause the mesh to bulge or slip out.

  2. Don’t Stretch the Spline: When installing the spline, make sure not to stretch it. Stretching can cause the spline to shrink back over time, which can lead to a loose screen.

  3. Use a Spline Roller: A spline roller tool helps push the spline firmly into the frame’s groove, ensuring a tight, secure fit. Use the rounded side of the roller to press the mesh into place, and then the grooved side to press the spline in.

  4. Consider Frame Condition: If the spline groove in your frame is bent or warped, it may affect how the spline fits. In these cases, consider straightening the frame or replacing it to ensure proper mesh tension and a secure spline fit.

Conclusion

Choosing the right spline for your replacement window screens or sliding screen doors is essential for a smooth installation and long-lasting results. Measure your screen frame’s groove accurately, match the spline material to your mesh type, and avoid stretching the spline during installation. With these tips in mind, you'll be able to keep your screens taut, secure, and looking great for years to come.

For a wide range of spline options, along with premium mesh materials and custom screen solutions, check out our products at Shade Screen Solutions! We’re here to help with all your screen replacement needs, from window screens to sliding screen doors.
