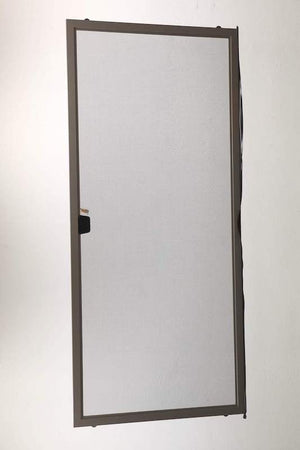

How to Measure for Sliding Screen Doors: A Step-by-Step Blueprint
A sliding screen door that sticks, jumps the track, or leaves a gap for bugs is more than an inconvenience—it’s a failed investment. Most big-box retailers sell "universal" screen doors designed to fit a wide range of openings, but because they are built with flimsy frames and adjustable heights, they rarely last more than a season.
At Shade Screen Solutions, our custom sliding screen doors are built to your exact specifications. To get that "smooth-as-silk" glide, you need a perfect measurement. Here is your blueprint for success.
1. The Golden Rule: Width x Height
In the screen industry, we always talk in Width (horizontal) by Height (vertical).
Before you pull out the tape measure, determine if you are measuring an existing door or the door opening.
Option A: Measuring an Existing Screen Door
If you have the old door and it fit well, this is the most reliable method.
-
Measure the Width: Measure from the outside edge of the left frame to the outside edge of the right frame.
-
Measure the Height: Measure from the very top edge to the very bottom edge. Do not include the rollers in this measurement, just the frame itself.
Option B: Measuring the Door Opening (No Door Present)
If the original door is missing, you will need to measure the "track-to-track" dimensions of your patio door frame.
-
For the Width: Measure from the face of the side jamb (where the door closes) to the center of the vertical mullion (the middle bar of the glass door) on the stationary panel. Your screen should overlap the stationary glass slightly to ensure a bug-tight seal.
-
For the Height: Place your tape measure on the top of the bottom track and measure up to the bottom of the top track.
Important: Once you have the track-to-track height, deduct 3/8" to that measurement.
2. Identifying Your Track Type
Not all patio tracks are created equal. Look at the bottom rail of your door frame:
-
U-Channel: The screen sits inside a groove.
-
T-Rail (Fin): The screen rollers sit on top of a raised "fin" or rail.
Knowing your track type helps you decide if you need a standard custom door or a specialty solution like our Genius Retractable Doors.
3. Why Material Choice Matters
When ordering a custom door, the frame is only half the story. Because sliding doors face more "traffic" than window screens, consider these mesh upgrades:
-
PetScreen®: 7x stronger than standard mesh. If you have dogs or cats that paw at the door, this is a non-negotiable.
-
BetterVue®: If you have a beautiful backyard view, this high-visibility mesh stays nearly invisible from the inside.
4. Troubleshooting Common Issues
-
The "Out of Square" Frame: Older homes settle. Measure the height at the left, center, and right of the opening. If the numbers vary by more than 1/8", use the smallest measurement.
-
The Bug Seal: Does your door have a "bug flap"? This is the vinyl strip on the back of the door that seals the gap between the screen and the glass. All Shade Screen Solutions doors come with bug seals for a perfect finish.
Ready to Upgrade Your Patio?
A custom-built sliding screen door is one of the most impactful upgrades you can make to your home’s airflow and usability. Don't settle for a door that rattles.
View our Custom Sliding Screen Door Options and get an instant quote today.
